This tutorial shows you how to create a simple map in XYZ studio.
What you'll learn
- The basics of XYZ Studio
- How to upload a GeoJSON file to XYZ Studio
- How to add your new dataset to an XYZ project
- How to style the map with colors and symbols
- How to add interactivity with pop-ups
- How to publish and share your map
Prerequisites
- None
In this demo we'll download a public GeoJSON file of earthquake locations from the USGS, then upload it to XYZ Studio.

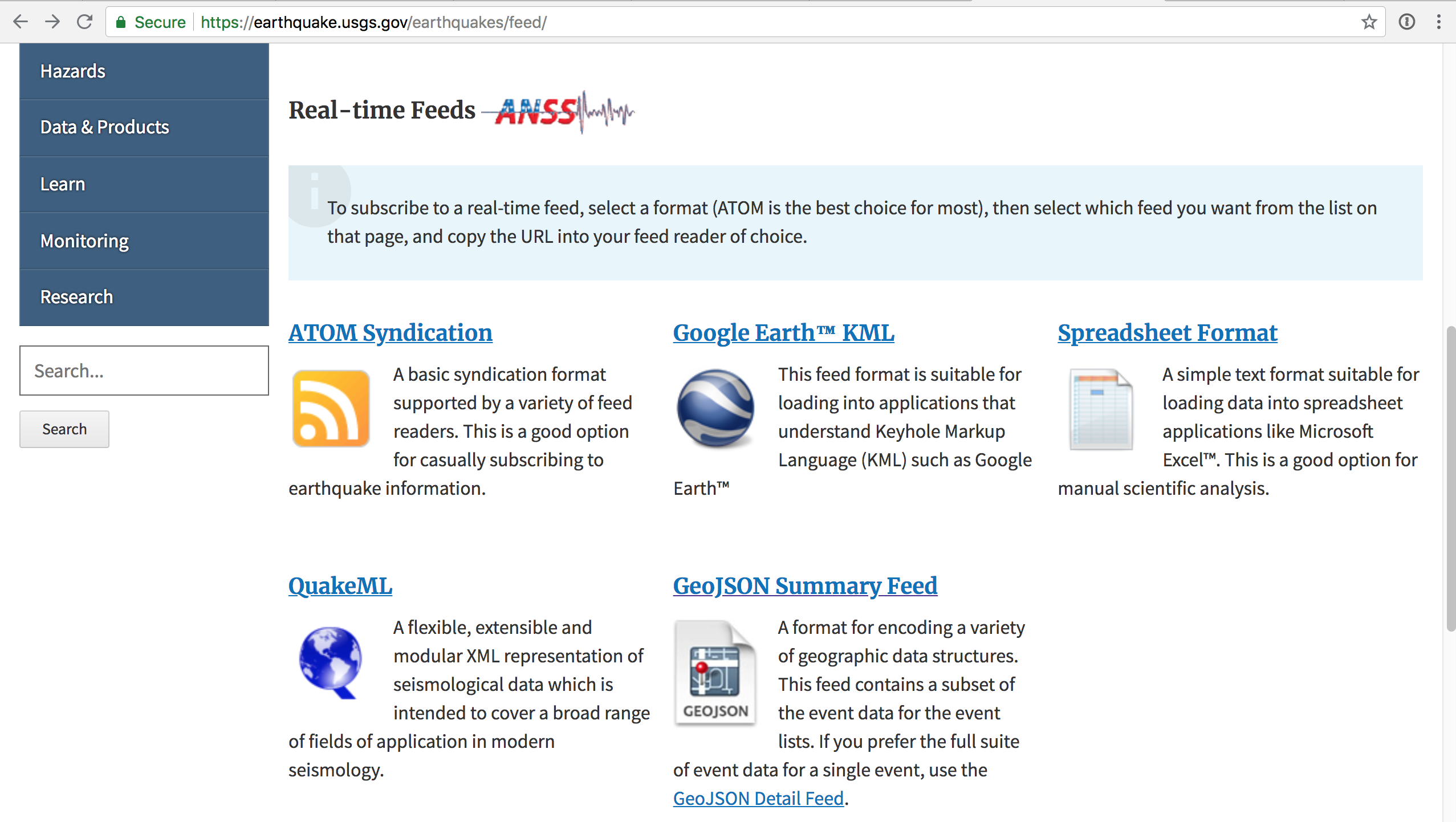

Go to https://earthquake.usgs.gov/earthquakes/feed/ and scroll down to "GeoJSON Summary Feed". Click on that link.

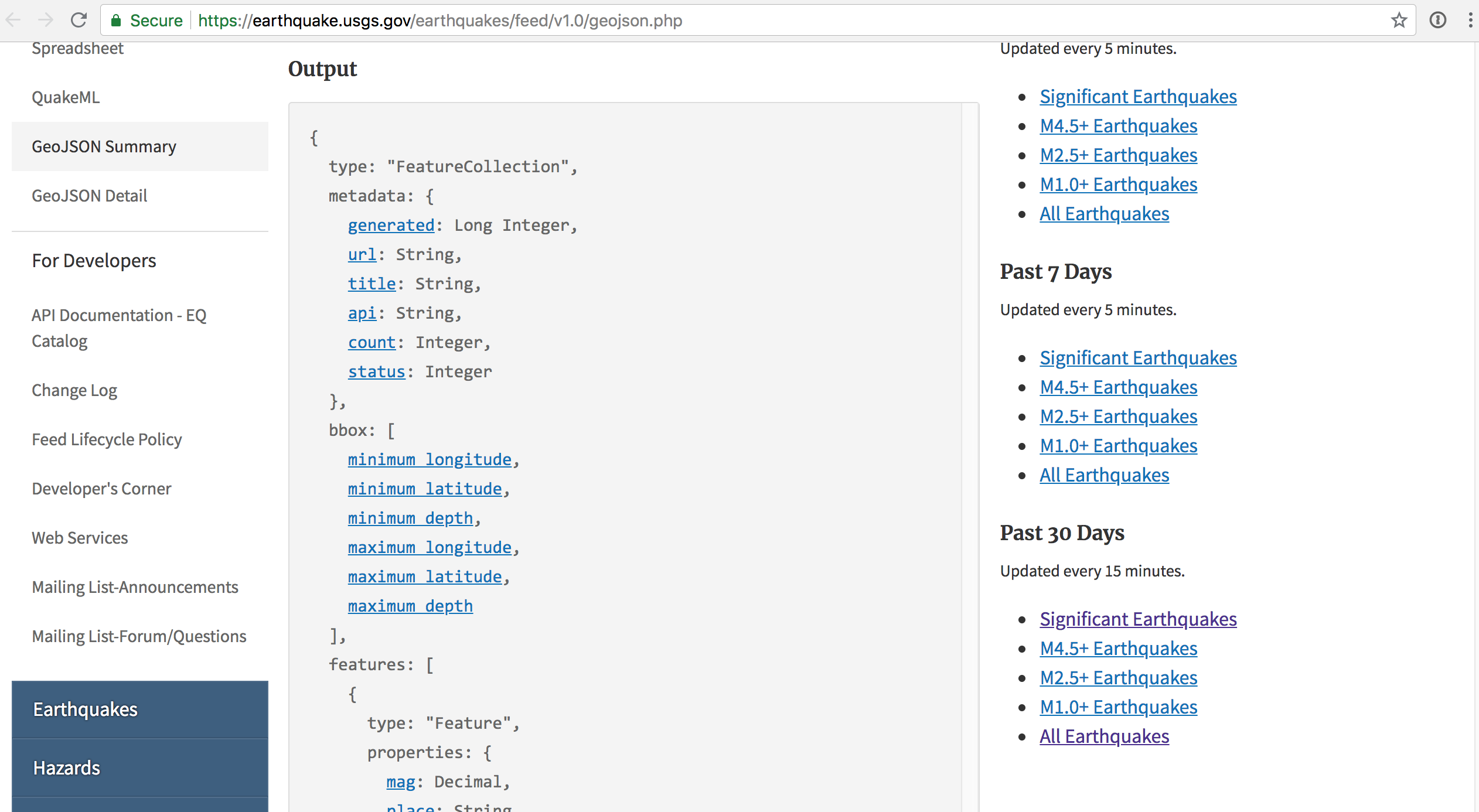

On the GeoJSON Summary Format page, click "All Earthquakes" for the past 30 days. The link is at the bottom right corner of the page.
Download the all_month.geojson file to your computer. Depending on your browser and your operating system, clicking that link might be enough to start the file downloading. But if you see a bunch of random text on your screen, you might be looking at the raw GeoJSON file. If so, you may need to go to the File > Save Page As... menu in your browser to download this file to your computer. If you are a Safari user, you might see the option to save the page as a Web Archive. You don't want that option. Choose "Page Source" instead.

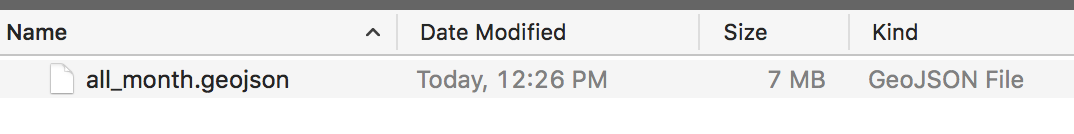

Also, make sure that when you've downloaded the file, the full file name is all_month.geojson. If your operating system adds any additional file extension to the end (such as all_month.geojson.json or all_month.geojson.txt) make sure to remove that extra file extension by renaming the file.
Depending on how many earthquakes have happened in the last month, the file size will be something around 8 megabytes.
You can open up this GeoJSON file if you're curious about the GeoJSON file format. If you're not curious, you can skip ahead to the next step.
If you open the GeoJSON file, the first few lines should look something like this, which is not particularly easy to read:
{"type":"FeatureCollection","metadata":{"generated":1537581272000,"url":"https://earthquake.usgs.gov/earthquakes/feed/v1.0/summary/all_month.geojson","title":"USGS All Earthquakes, Past Month","status":200,"api":"1.5.8","count":9850},"features":[{"type":"Feature","properties":{"mag":null,"place":"14km E of Seven Trees, CA","time":1537581188710,"updated":1537581270267,"tz":null,"url":"https://earthquake.usgs.gov/earthquakes/eventpage/nc73087921","detail":"https://earthquake.usgs.gov/earthquakes/feed/v1.0/detail/nc73087921.geojson","felt":null,"cdi":null,"mmi":null,"alert":null,"status":"automatic","tsunami":0,"sig":0,"net":"nc","code":"73087921","ids":",nc73087921,","sources":",nc,","types":",nearby-cities,origin,phase-data,","nst":19,"dmin":0.04379,"rms":0.02,"gap":70,"magType":null,"type":"earthquake","title":"M ? - 14km E of Seven Trees, CA"},"geometry":{"type":"Point","coordinates":[-121.67733,37.3076668,6.59]},"id":"nc73087921"},
{"type":"Feature","properties":{"mag":1.6,"place":"121km NW of Arctic Village, Alaska","time":1537580268294,"updated":1537580544761,"tz":-540,"url":"https://earthquake.usgs.gov/earthquakes/eventpage/ak20260406","detail":"https://earthquake.usgs.gov/earthquakes/feed/v1.0/detail/ak20260406.geojson","felt":null,"cdi":null,"mmi":null,"alert":null,"status":"automatic","tsunami":0,"sig":39,"net":"ak","code":"20260406","ids":",ak20260406,","sources":",ak,","types":",geoserve,origin,","nst":null,"dmin":null,"rms":0.72,"gap":null,"magType":"ml","type":"earthquake","title":"M 1.6 - 121km NW of Arctic Village, Alaska"},"geometry":{"type":"Point","coordinates":[-147.7682,68.8514,0]},"id":"ak20260406"},
{"type":"Feature","properties":{"mag":0.41,"place":"10km NE of Aguanga, CA","time":1537578694200,"updated":1537578914440,"tz":-480,"url":"https://earthquake.usgs.gov/earthquakes/eventpage/ci37363842","detail":"https://earthquake.usgs.gov/earthquakes/feed/v1.0/detail/ci37363842.geojson","felt":null,"cdi":null,"mmi":null,"alert":null,"status":"automatic","tsunami":0,"sig":3,"net":"ci","code":"37363842","ids":",ci37363842,","sources":",ci,","types":",geoserve,nearby-cities,origin,phase-data,scitech-link,","nst":15,"dmin":0.0803,"rms":0.17,"gap":118,"magType":"ml","type":"earthquake","title":"M 0.4 - 10km NE of Aguanga, CA"},"geometry":{"type":"Point","coordinates":[-116.7776667,33.4923333,4.33]},"id":"ci37363842"},
...
...
...
If we want to see the structure more clearly, we can add some linebreaks, shown below.
Now you can see how the GeoJSON features are structured, where each feature has a set of properties and also a geometry. If you are curious to learn more about GeoJSON, the Wikipedia article is quite informative.
{
"type": "FeatureCollection",
"metadata": {
"generated": 1536625395000,
"url": "https://earthquake.usgs.gov/earthquakes/feed/v1.0/summary/all_month.geojson",
"title": "USGS All Earthquakes, Past Month",
"status": 200,
"api": "1.5.8",
"count": 11986
},
"features": [
{
"type": "Feature",
"properties": {
"mag": 0.42,
"place": "4km WNW of Anza, CA",
"time": 1536623825450,
"updated": 1536624040422,
"tz": -480,
"url": "https://earthquake.usgs.gov/earthquakes/eventpage/ci38055935",
"detail": "https://earthquake.usgs.gov/earthquakes/feed/v1.0/detail/ci38055935.geojson",
"felt": null,
"cdi": null,
"mmi": null,
"alert": null,
"status": "automatic",
"tsunami": 0,
"sig": 3,
"net": "ci",
"code": "38055935",
"ids": ",ci38055935,",
"sources": ",ci,",
"types": ",geoserve,nearby-cities,origin,phase-data,scitech-link,",
"nst": 15,
"dmin": 0.01985,
"rms": 0.1,
"gap": 94,
"magType": "ml",
"type": "earthquake",
"title": "M 0.4 - 4km WNW of Anza, CA"
},
"geometry": {
"type": "Point",
"coordinates": [
-116.7155,
33.5733333,
11.31
]
},
"id": "ci38055935"
},
...
...
...
Now let's open up XYZ Studio. https://xyz.here.com/studio
When you open XYZ Studio you'll see your Dashboard. There is one tab for "Projects" (you can think of these as "maps") and another tab for "Data Hub" (which is where you can manage data layers to add to your maps).

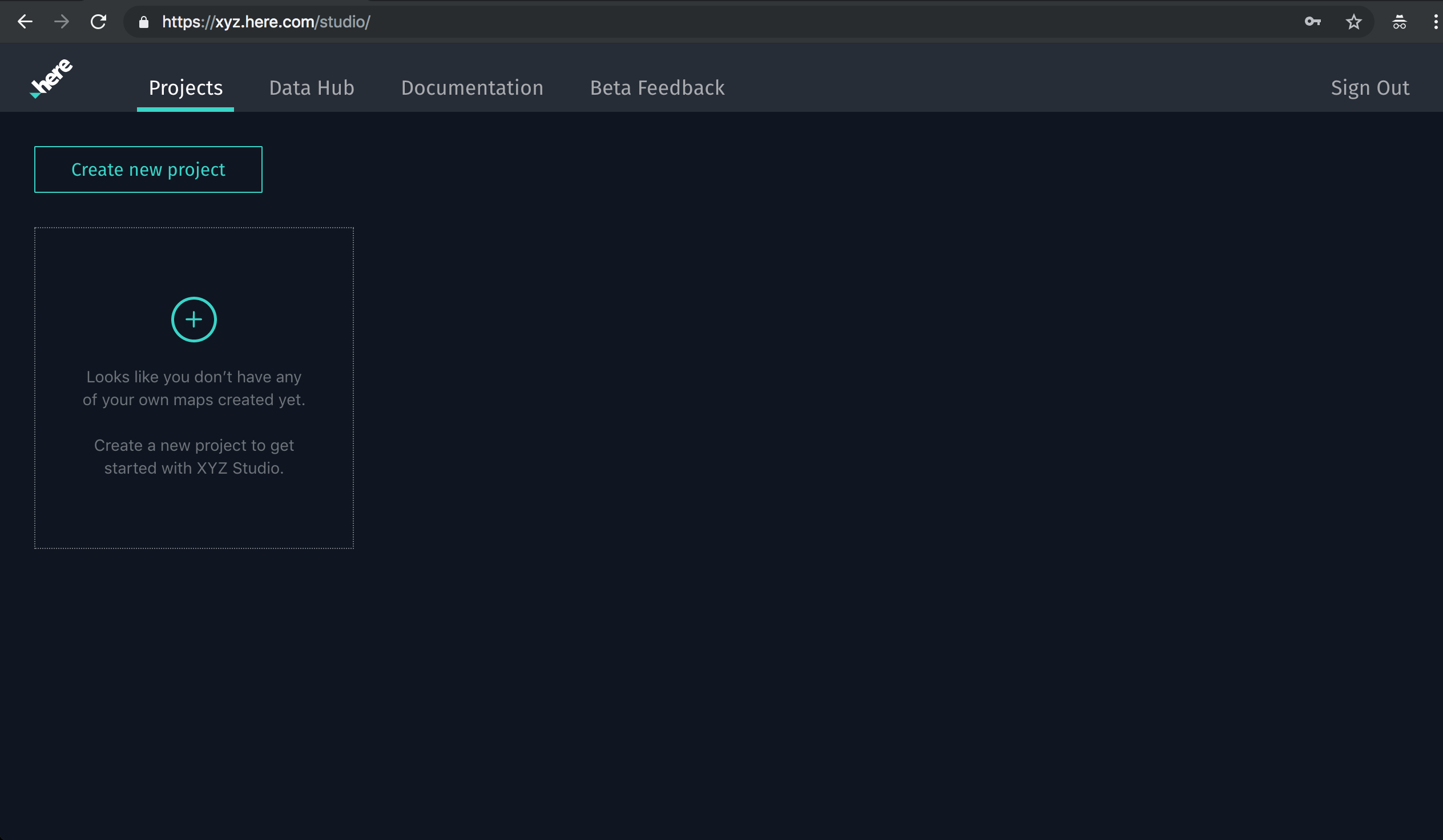

At first you'll see your dashboard, with the "Projects" tab active. If you're just getting started with Studio, you probably don't have any projects or data yet.

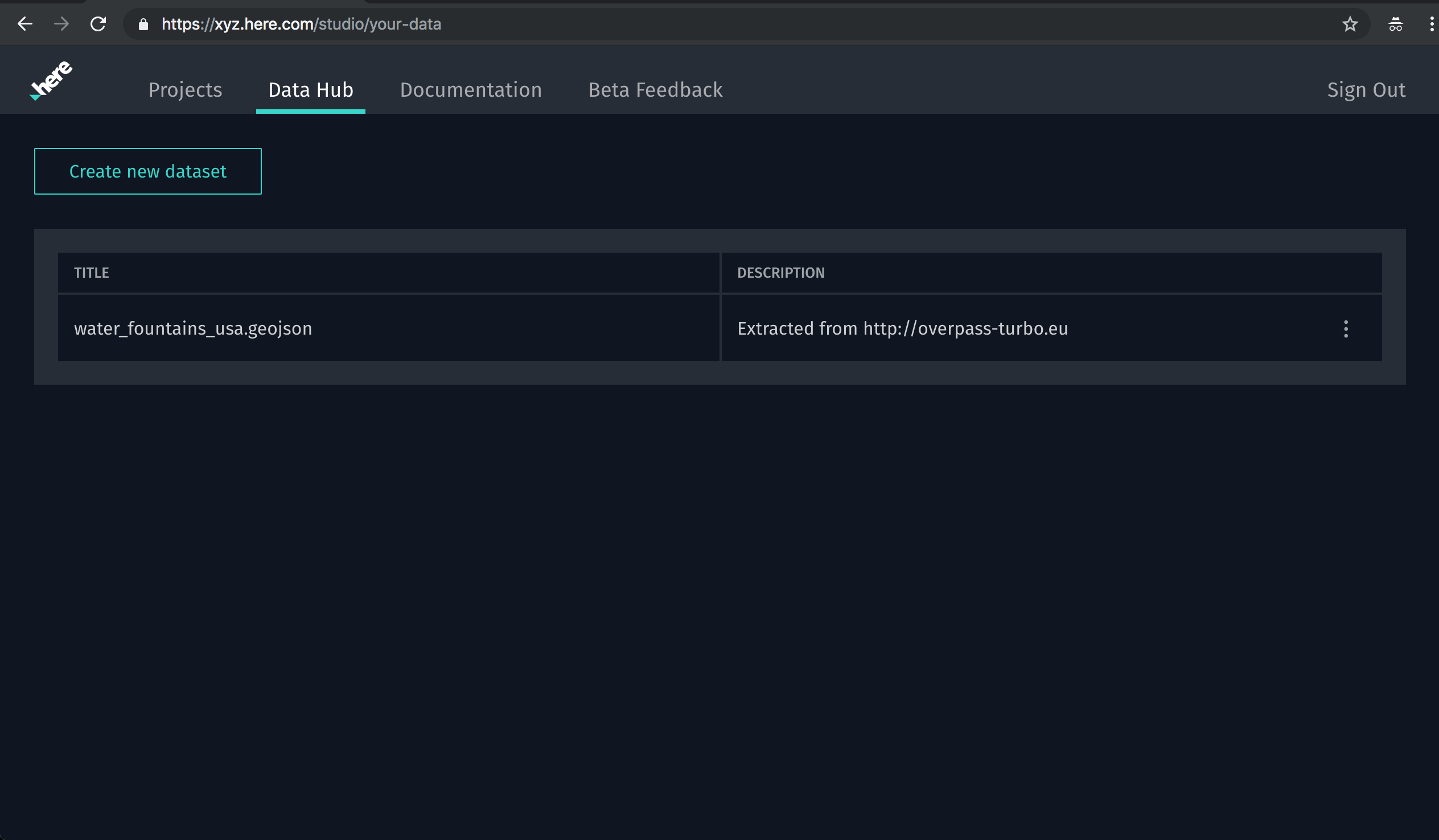

Let's go to Data Hub first, by clicking on that tab. Then click the "Create new dataset" button.
This will bring you to a list of your datasets and a "Upload new dataset" button. Here you can upload the GeoJSON file that you downloaded to your computer.
Here we could create a new "Project" with the dataset, or we could go to the Projects tab and create one there. Let's click on the Projects tab now.
Now let's click on the Projects tab. Click "Create new project".
Now we see the project's page. Let's give this project a name, something like "Earthquakes".
Right now, there's no data in our map. All we have is a "basemap", which is the background map that we will layer our data on top of. You have a few color options for your basemap. Feel free to pick whichever one you like. For example, here's a light-colored map:

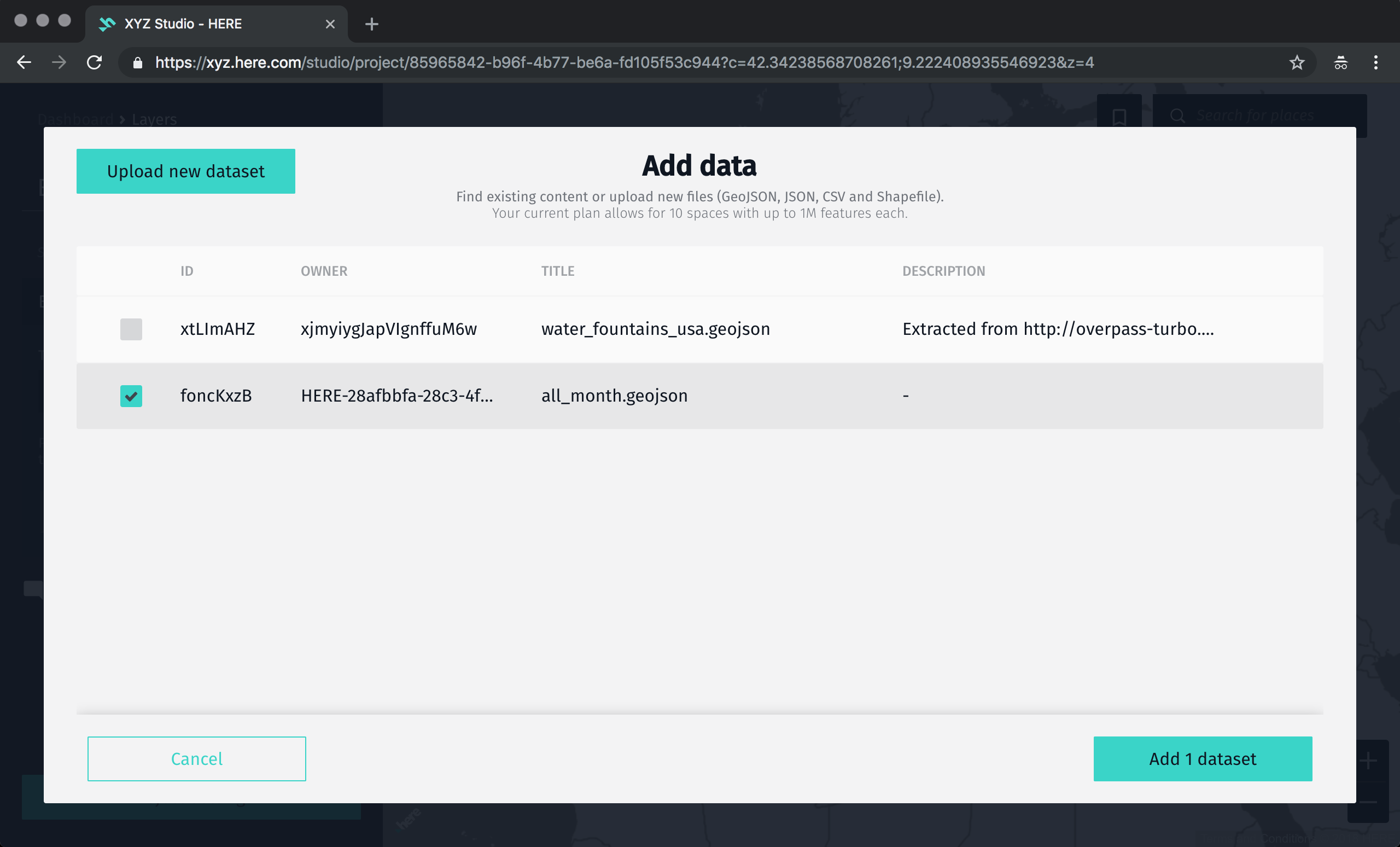

But now we need to add a layer to our map. Click the + Add button, and a new window will open up, prompting you to add some data from your "Data Hub". Here we can select the GeoJSON layer that we just uploaded.
Now let's navigate back to our Projects and view our "Earthquakes" project. Use the + Add button to add a layer to the map, if you haven't already.

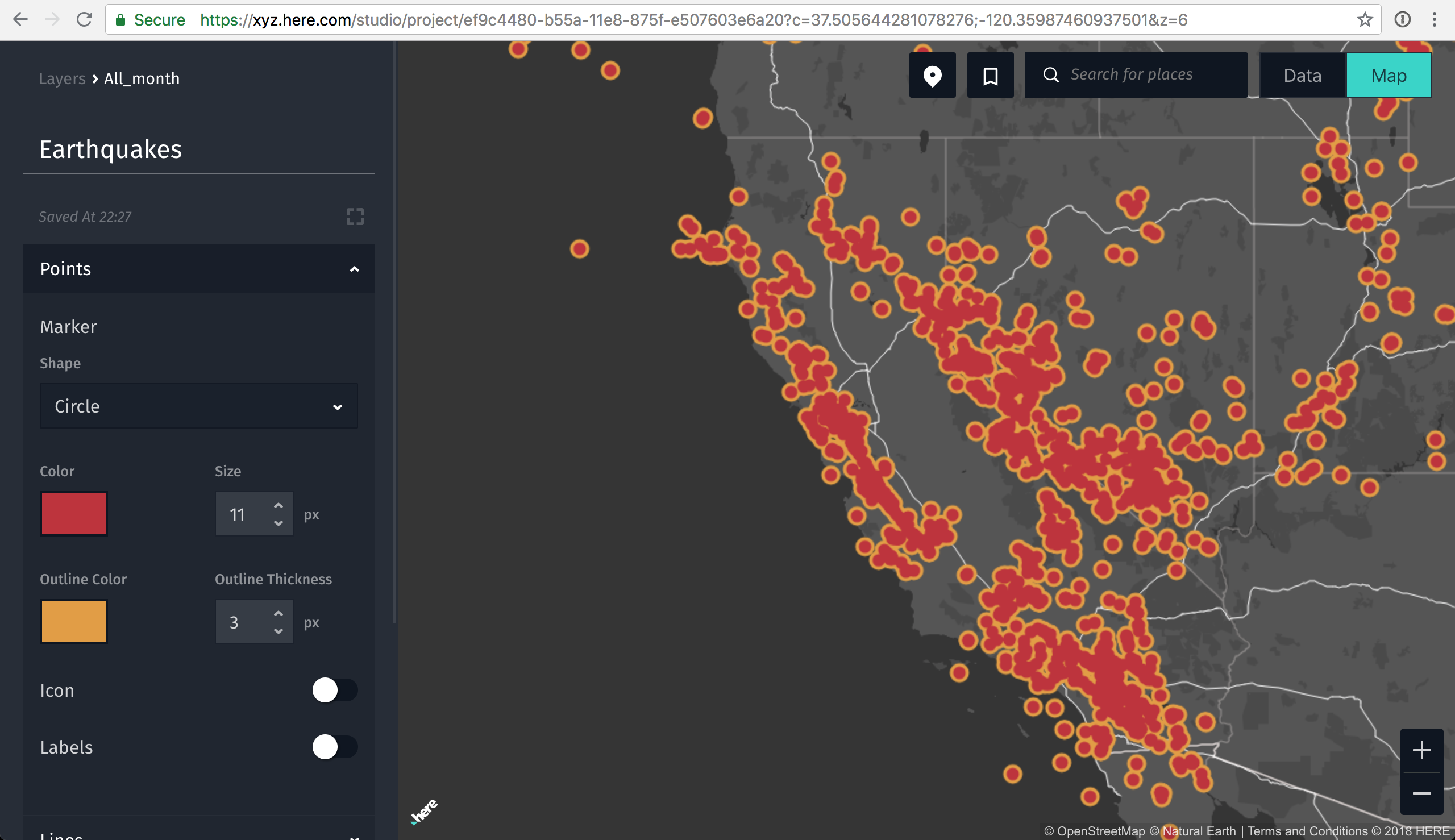

Adjust the style of the points (currently all the points have to have the same style, but we're working on attribute-based styling). You can adjust the size, color, stroke, etc.
You can also customize your pop-up window (called "Cards") by dragging the fields into a meaningful order. The first field will be the title in the pop-up, and any fields below the solid line won't show up in the card at all.
We're almost ready to publish our map, but first we have to set the default view. This is called a "bookmark" and we can make one by clicking the bookmark icon near the top.

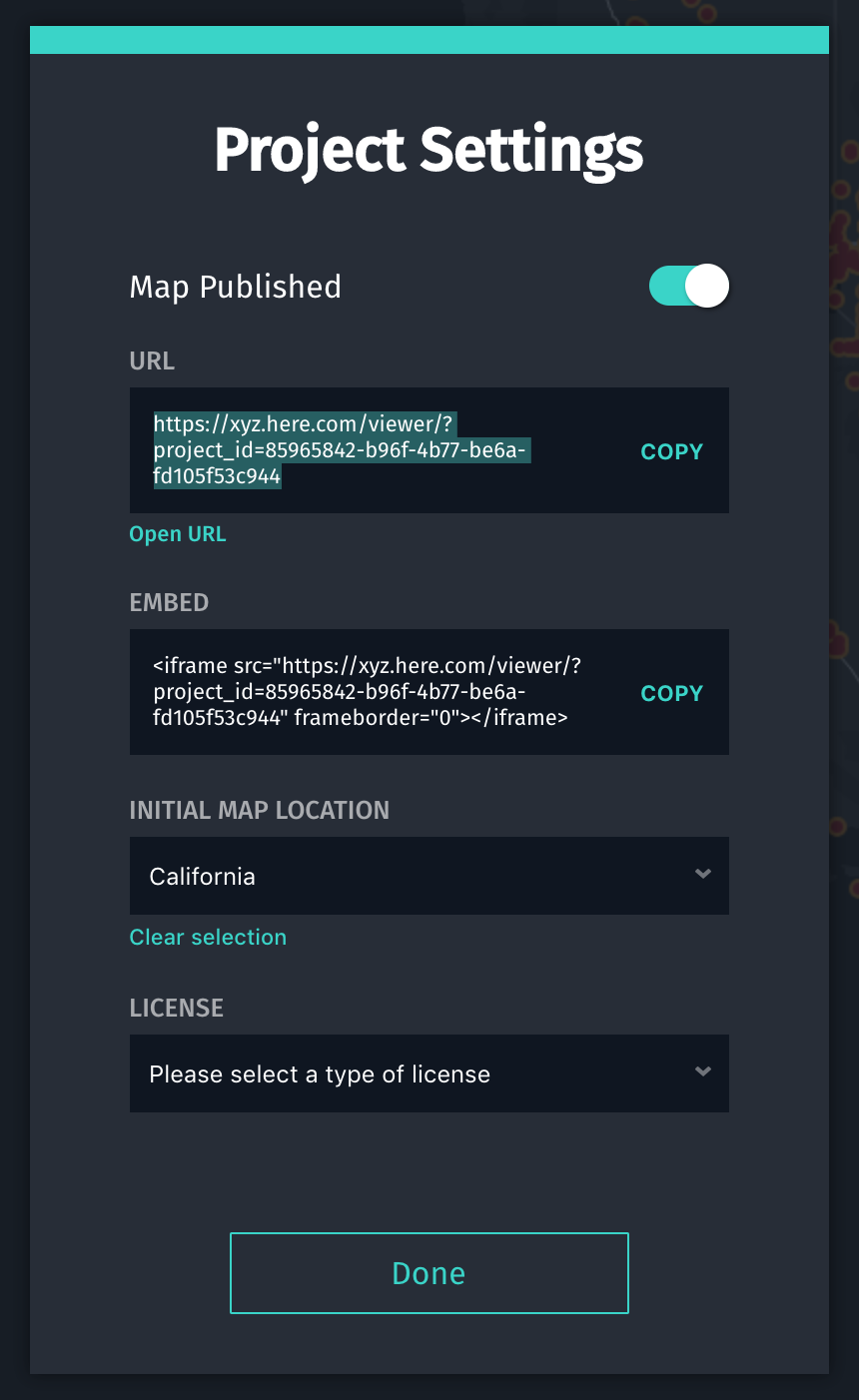

Now let's share the map! Click the "Project Settings" button in the lower left corner of the window. Here you can publish your Project, and get sharable links that anyone can view online or embed in a webpage.
The sharable URL will look something like this: https://xyz.here.com/viewer/?project_id=85965842-b96f-4b77-be6a-fd105f53c944
